Stahlwerk AC/DC TIG 200 ST Tig Welder P/N 6918
TIG welding machine with 200 A | Combination inverter AC/DC TIG and MMA/Stick welding | HF ignition | Hot start and anti-stick | 2T and 4T modes | AC TIG welding for aluminum
The STAHLWERK AC/DC TIG 200 ST is a powerful TIG welding machine with MMA/E-hand welding function. One of the advantages of this AC-powered 2-in-1 combination welding machine is its compact design and low weight of just 11.5 kg. The AC/DC TIG 200 ST has practical functions such as smart cooling and integrated overheating protection. When TIG welding, the contactless HF ignition enables comfortable working and better welding results. The upstream and downstream flow of the welding gas can be individually adjusted to protect the tungsten electrode from wear and prevent oxidation of the weld seam. State-of-the-art IGBT technology enables maximum performance in TIG and MMA welding. The AC/DC TIG 200 ST IGBT welding machine is supplied with a comprehensive accessory package. Stahlwerk AC/DC TIG 200 ST
Equipment functions & components of the Stahlwerk AC/DC TIG 200 ST Tig Welder

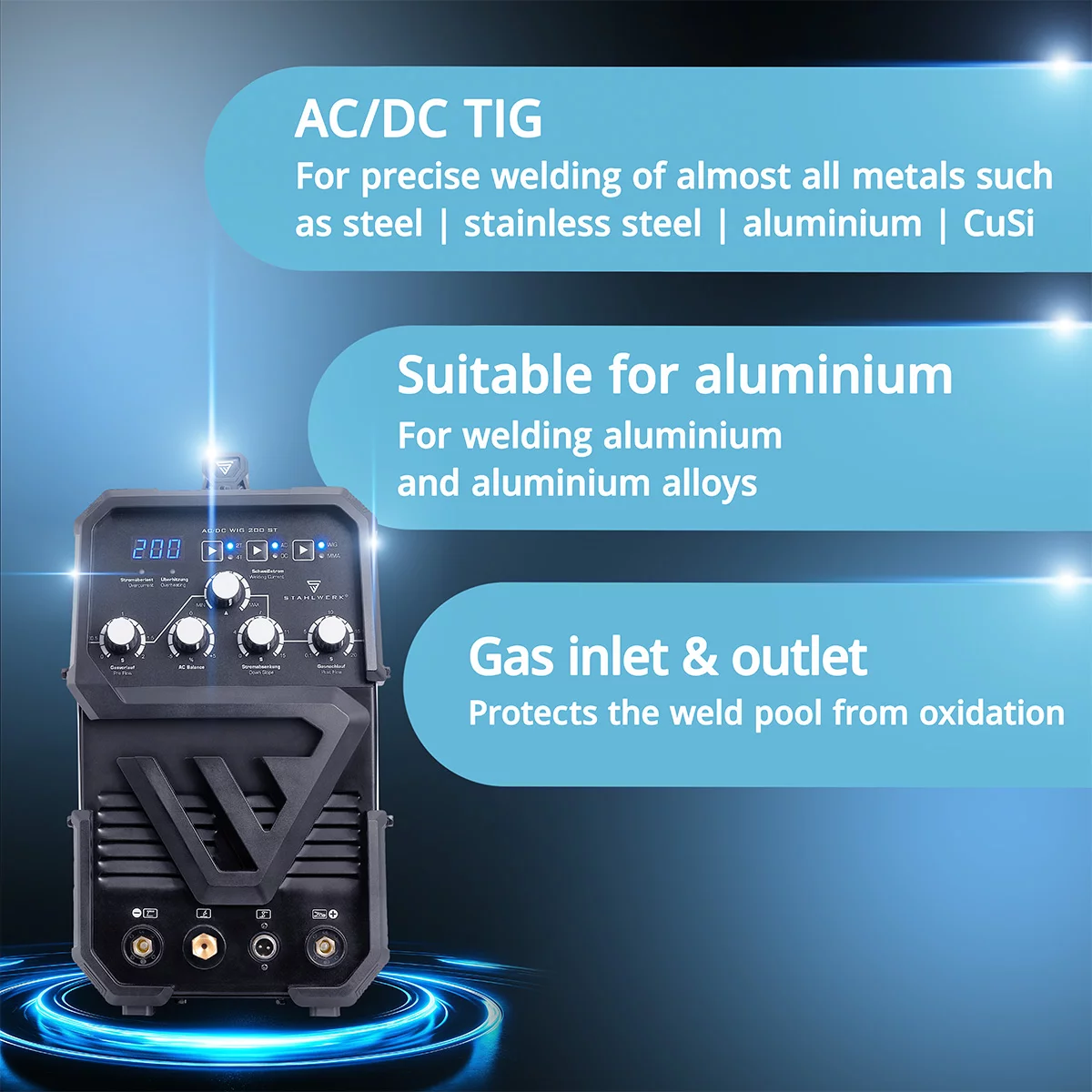

- AC/DC TIG welding -A alternating current (AC) and direct current (DC). Welding of almost all metals, such as steel, stainless steel, aluminum, copper and many more.
- 2 in 1 combination unit – TIG & MMA welding is possible up to 200A.
- IGBT Technology – Latest and most advanced transistor technology enables high performance welding! No transformer, no MOSFET, state of the art IGBT!
- Lightweight & compact design – only 11.5 kg weight and dimensions of 455 x 220 x 370 mm. Inovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
- HF ignition – enables non-contact ignition and provides much better welding results. No LIFT ARC, no strike ignition!
- Highest Efficiency & Power – Single phase AC power (230V) powers the unit and allows output power of true 200 amps.

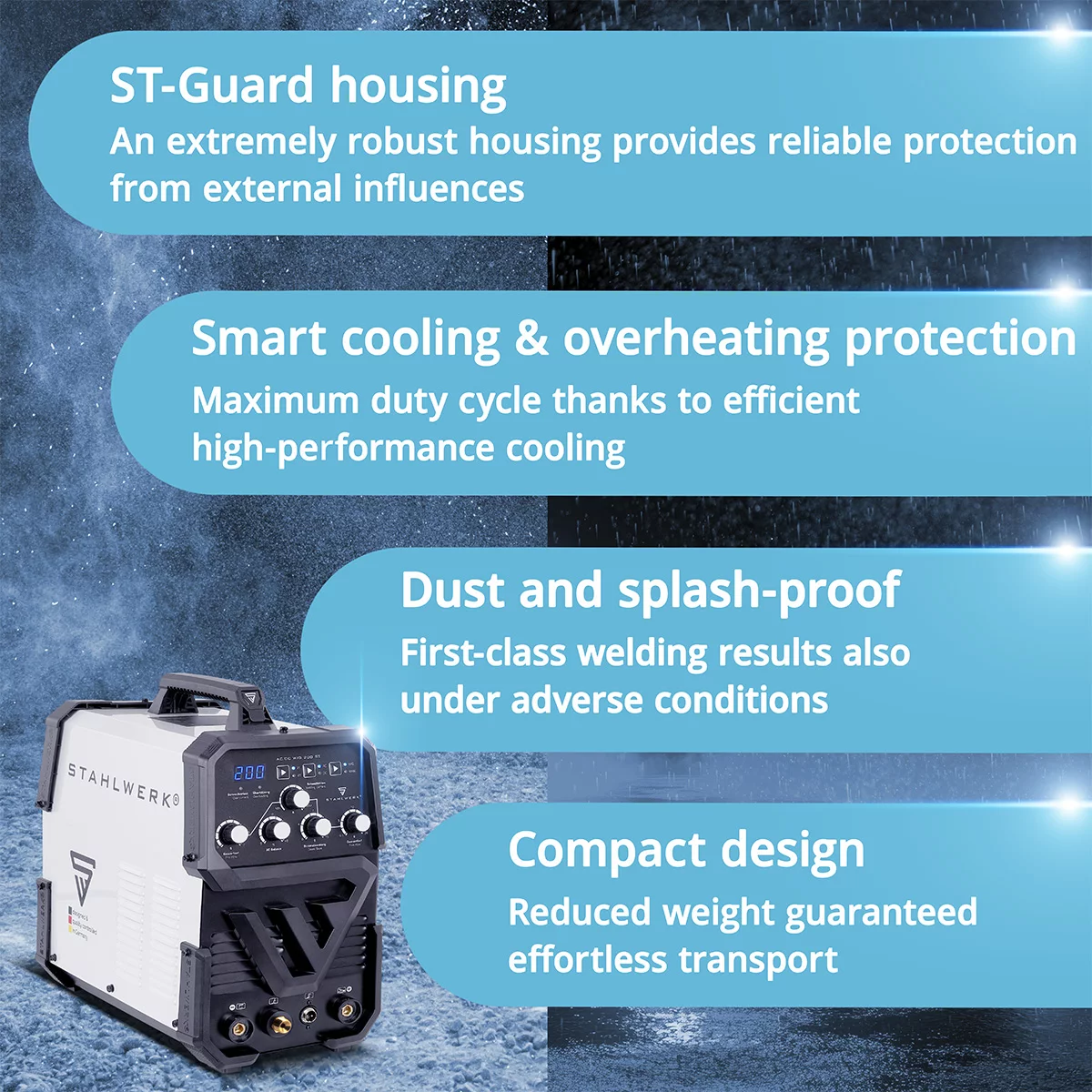

- Smart Cooling & Overheat Protection – State-of-the-art technology, built-in overheat protection, and high performance cooling allow for maximum power retrieval.
Device features & benefits of the Stahlwerk AC/DC TIG 200 ST Tig Welder
- 2T/4T (TIG) – determines the control of the operating mode and offers extended control over the current flow. In 2T mode, high-frequency (HF) ignition remains active until the button on the torch is released. In 4T mode, the arc is ignited after pressing and releasing the button once. After pressing and releasing the button again, ignition is terminated. Some functions, such as current reduction, are only possible in 4T mode.
- Current reduction – prevents the formation of blowholes (end craters) at the end of the weld seam.
- Gas pre- and post-run (TIG) – protects the tungsten electrode from excessive wear and protects the weld seam from oxidation. The parameters can be set individually and separately. They specify how long gas should flow before and after ignition.

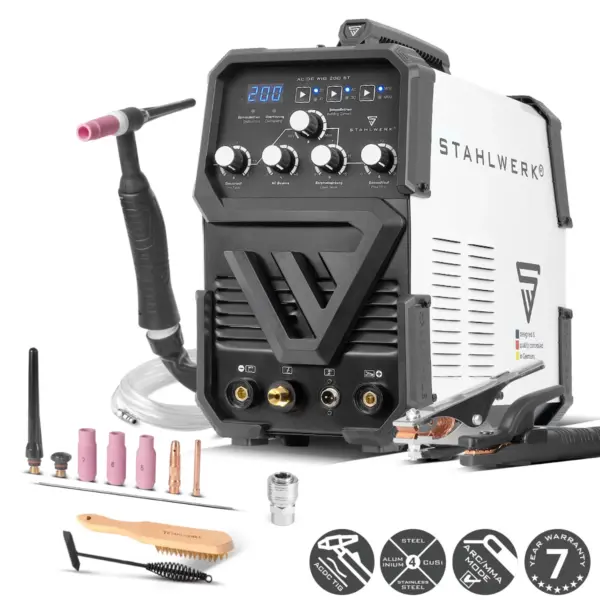

Scope of delivery for Stahlwerk AC/DC TIG 200 ST Tig Welder
- 1 x STAHLWERK AC/DC TIG 200 ST IGBT welding machine
- 1 x Professional TIG welding torch WP-26F / hose package 3 meters* with flexible torch head and kink protection on the gas connection
- 1 x TIG TIG accessory set 8-piece:
-
- 3 x gas nozzles sizes: 5, 6, 7
- 1 x clamping sleeve size 1.6
- 1 x clamping sleeve housing size 1.6
- 2 x torch cap – one short and one long
- 1 x universal tungsten electrode 1.6 mm
- * Pre-assembled accessories from the welding torch illustration are included in the 8-piece set
-
- 1 x earth cable 3 meters
- 1 x electrode holder 3 meters
- 1 x wire brush
- 1 x slag hammer
- 1 x Gas connection hose with quick coupling 5 meters
- 1 x Snap-on connection set
- 1 x protective cover
View our range of Tig Welders here
