STAHLWERK DC TIG 200 Pulse Pro – Digital Professional HF TIG Welder with MMA
£329.50 (ex VAT) £395.40(inc VAT)
STAHLWERK DC TIG 200 Pulse Pro is a powerful TIG welding machine with MMA/manual welding function. One of the many advantages of this DC-powered 2-in-1 combination welding machine is its compact design and the intuitive control panel, on which all functions are clearly arranged. Unlock the potential of your welding projects and experience the difference of cutting-edge technology with Stahlwerk.
Orders OVER £75 (Excluding VAT)
Orders UNDER £75 (Excluding VAT)
Republic of Ireland: £8.50 (+VAT)
UK Mainland: £8.50 (+VAT)
See our Shipping & Returns page for more information
Have a Question? Ask a Specialist
Low Prices
Price match guarantee
Wide range of products available
Always the correct part
In-House Experts.
We know our products
Easy Returns.
Quick & Hassle Free
STAHLWERK DC TIG 200 Pulse Pro – Digital Professional HF TIG Welder
The STAHLWERK DC TIG 200 Pulse Pro is a powerful TIG welding machine with MMA/manual welding function. One of the many advantages of this DC-powered 2-in-1 combination welding machine is its compact design and the intuitive control panel, on which all functions are clearly arranged.
Individual parameter settings, such as pulse current, pulse frequency, long and short pulse, can be made quickly. The STAHLWERK DC TIG 200 Pulse Pro has comprehensive functions. Welding thin sheets is just as possible as processing strip steel and flat iron. In short-pulse mode, the temperature and the weld pool can be controlled very well. In long-pulse mode, a deeper penetration can be achieved to produce wider weld seams. Advanced IGBT technology enables maximum performance in TIG and MMA welding.
Functions – STAHLWERK DC TIG 200 HF Tig Welder
- DC TIG welding – direct current (DC). Welding of almost all metals, such as steel, stainless steel, copper and many more. Note: Not suitable for aluminum – for this an AC/DC unit is needed.
- 2 in 1 combination unit – TIG welding is possible up to 200 A, MMA welding up to 160 A.
- Extensive pulse function – TIG PULSE – prevents burning through materials and reduces deformation due to heat, especially suitable for welding thin plates whose material may be heated only slightly. Adjustable parameters are: Pulse current, pulse frequency, long and short pulse.
- 2T/4T (TIG) – determines the control of the operating mode and provides extended control over the current flow. In 2T mode, high frequency (HF) ignition remains active until the button on the torch is released. In 4T mode, pressing and releasing the button once ignites the arc. After pressing and releasing again, the ignition is terminated. Some functions, such as current reduction, are only possible in 4T.
- Current reduction – prevents the formation of shrink marks (end craters) at the end of the weld.
- Gas follow-up (TIG) – protects the tungsten electrode from excessive wear and protects the weld seam from oxidation. The parameter can be set individually and separately. It specifies how long gas should flow after ignition.
Features & Advantages
- IGBT Technology – Latest and most advanced transistor technology enables highest power and high duty cycle (ED)! No transformer, no MOSFET, state-of-the-art IGBT! STAHLWERK DC TIG 200.

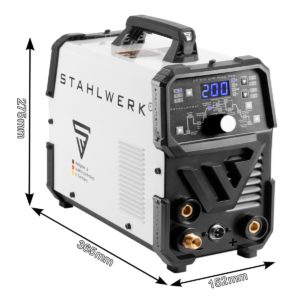

- Lightweight & compact design – only 5.8 kg weight and dimensions of 365 x 152 x 275 mm. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
- HF ignition (TIG) – enables non-contact ignition and provides much better welding results. No LIFT ARC, no strike ignition!
- Welding Current / Pulse Current – With the two parameters “Welding Current” and “Pulse Current” you can set two different currents for a welding process, between which the welding current then always alternates.
- Pulse width – With the pulse width, you set how long the welding current assumes the current strength of the pulse current before it swings back to the normal welding current strength.
- Pulse Frequency – The pulse frequency sets how often the current intensity alternates between the two set values in a specified time interval.
- Long pulse – The weld becomes wider, the heat input is higher and the penetration is deeper.
- Short pulse – The weld pool is easier to control and there is less risk of welding a hole in the plate.
- Innovative hose package including modified WP-26 torch with flex head. This enables flexible and easy working.
- Hotstart – Automatic voltage increase at start-up for better ignition results.
- Anti-Stick – Automatic shutdown of welding current when the electrode sticks, allowing easy removal.
- TIG (Tungsten Inert Gas) – Shielded metal arc welding with inert/inactive gases such as Argon 4.6 (99.996%). An arc is created between the tungsten electrode and the workpiece in an argon bell. This melts the material and any filler material added. A weld seam is produced.
- MMA electrode welding / ARC welding – a universal welding process. An arc causes the electrode to melt, forming the weld. No shielding gas is required.
- Job memory – memory option for self-configured settings / presets. There are 10 memory locations available
The STAHLWERK DC TIG 200 comes with,
- 1 x STAHLWERK DC TIG 200 Pulse Pro
- 1 x Professional TIG welding torch WP-26F / hose package 3 meters, ball joint and flexible torch head
- 1 x TIG TIG accessory set 8-piece: 3 x gas nozzles sizes: 5, 6, 7, 1 x clamping sleeve size 1.6, 1 x clamping sleeve housing size 1.6, 2 x torch caps – one short and one long, 1 x universal tungsten electrode 1.6 mm
- 1 x earth cable 3 meters
- 1 x wire brush
- 1 x gas connection hose with quick coupling 5 meters
- 1 x protective cover
What is DC TIG Welding? Direct Current Tungsten Inert Gas (DC TIG) welding is a precision welding process renowned for its ability to produce high-quality, clean welds, especially when working with stainless steel and mild steel. This welding technique uses a non-consumable tungsten electrode to produce the weld, while an inert gas shield protects the weld area from atmospheric contamination. DC TIG welding is the go-to method for projects requiring detailed work, superior finish, and minimal distortion on thinner materials.
Why Choose Stahlwerk DC TIG 200 Pulse Pro?
The Stahlwerk DC TIG 200 Pulse Pro stands out as a premier choice for professionals and enthusiasts seeking unrivaled precision and reliability in welding stainless and mild steel. Here’s why:
- Advanced Pulse Functionality: The pulse feature of the DC TIG 200 Pulse Pro offers enhanced control over heat input, reducing the risk of warping or damaging the workpiece. This is especially crucial when working with thin materials or intricate designs.
- Superior Arc Stability: Experience smooth and stable arc performance at all times. The DC TIG 200 Pulse Pro ensures a consistent welding arc, enabling users to achieve cleaner, stronger welds with minimal spatter or imperfections.
- Versatile Welding Capabilities: Whether it’s delicate jewelry or robust automotive repairs, this welder accommodates a wide range of applications, making it a versatile tool in your welding arsenal.

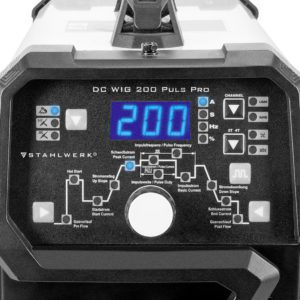

- User-Friendly Interface: Equipped with an intuitive interface, the DC TIG 200 Pulse Pro is accessible to welders of all skill levels. Its clear controls and adjustable settings allow for easy operation and precise adjustments to meet the specific demands of each project.
- Durable and Reliable: Stahlwerk is known for its commitment to quality and durability. The DC TIG 200 Pulse Pro is built to last, designed with high-quality components to withstand the rigors of daily use in any environment.
The Stahlwerk DC TIG 200 Pulse Pro is not just a tool; it’s a solution designed to elevate the art of welding stainless and mild steel. Offering unmatched precision, versatility, and ease of use, it caters to both the meticulous demands of professional workshops and the passion of hobbyists.
Whether your project requires intricate detail work or the strength to hold together under pressure, the DC TIG 200 Pulse Pro is engineered to deliver superior results that speak for themselves. Unlock the potential of your welding projects and experience the difference of cutting-edge technology with Stahlwerk.
To view our range of Stahlwerk Equipment click here.
STAHLWERK DC TIG 200 Pulse Pro
7 Year Warranty
