STAHLWERK welder MIG MAG 200 ST / Gas-shielded welder with synergic wire feed/Gasless Mig Welder
£360.00 (ex VAT) £432.00(inc VAT)
STAHLWERK welder MIG MAG 200 ST gas-shielded arc welder works with up to 200 amps and is suitable for both MIG/MAG welding and MMA welding. One advantage of this welding machine is that flux cored wire can be used. Welding without shielding gas is therefore also possible.
Orders OVER £75 (Excluding VAT)
Orders UNDER £75 (Excluding VAT)
Republic of Ireland: £8.50 (+VAT)
UK Mainland: £8.50 (+VAT)
See our Shipping & Returns page for more information
Have a Question? Ask a Specialist
Low Prices
Price match guarantee
Wide range of products available
Always the correct part
In-House Experts.
We know our products
Easy Returns.
Quick & Hassle Free
STAHLWERK welder MIG MAG 200 ST IGBT / gas-shielded welder with synergic wire feed and real 200 amps / Gasless Mig Welder / MMA
The STAHLWERK MIG-200 ST gas-shielded arc welder works with up to 200 amps and is suitable for both MIG/MAG welding and MMA welding. One advantage of this welding machine is that flux cored wire can be used. Welding without shielding gas is therefore also possible. In addition to smart cooling with integrated overheating protection, the welding machine has a synergic wire feed. The speed of the wire feed is automatically regulated by the set welding current. Thanks to advanced IGBT technology and extensive functions, the MIG-200 ST welding machine is powerful and reliable. The MIG-200 ST is supplied with a comprehensive accessory package.
Device functions & components
- MIG/MAG – Metal arc welding with direct current (DC). Welding can be done with inactive/inert (MIG, e.g. argon) or with active (MAG, e.g. CO2) gases. Gas and welding wire come from one torch head, allowing welding operations to be performed with only one hand.
- Synergic wire feed: The wire feed speed is controlled fully automatically by the welding current.
- 2 in 1 combination unit – MIG/MAG & MMA welding is possible up to 200A.
- IGBT Technology – Latest and most advanced transistor technology enables highest power and duty cycle (ED)! No transformer, no MOSFET, most modern IGBT!
- Lightweight & compact design – only 11.8 kg weight and dimensions of 450 x 240 x 370 mm. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
Device features & benefits
- Highest Efficiency & Power – Single phase AC (230V) power supplies the unit and allows output power of true 200 amps.
- Smart Cooling & Overheat Protection – State of the art technology, built-in overheat protection and high performance cooling allow maximum power to be retrieved.
- Flux-Cored Wire – All of our ST Series units can use flux-cored wire. This allows welding without shielding gas.
- Automatic wire feed – the speed of the wire feed is automatically controlled by the set welding current.
- Inductance – continuously adjustable choke, which smoothes the welding current and improves the welding quality and ignition characteristics.
- Current voltage (volts) – Variable voltage control to manually adjust the burn-in and burn-off of the wire. Thus, the different properties of a wide variety of materials can be acted upon.
- Manual wire push-through – no more gas loss or tedious pushing of the wire through. If a new wire roll is to be fed through the hose package, this is done conveniently from the unit using the red wire feed button when the hose package is laid out.

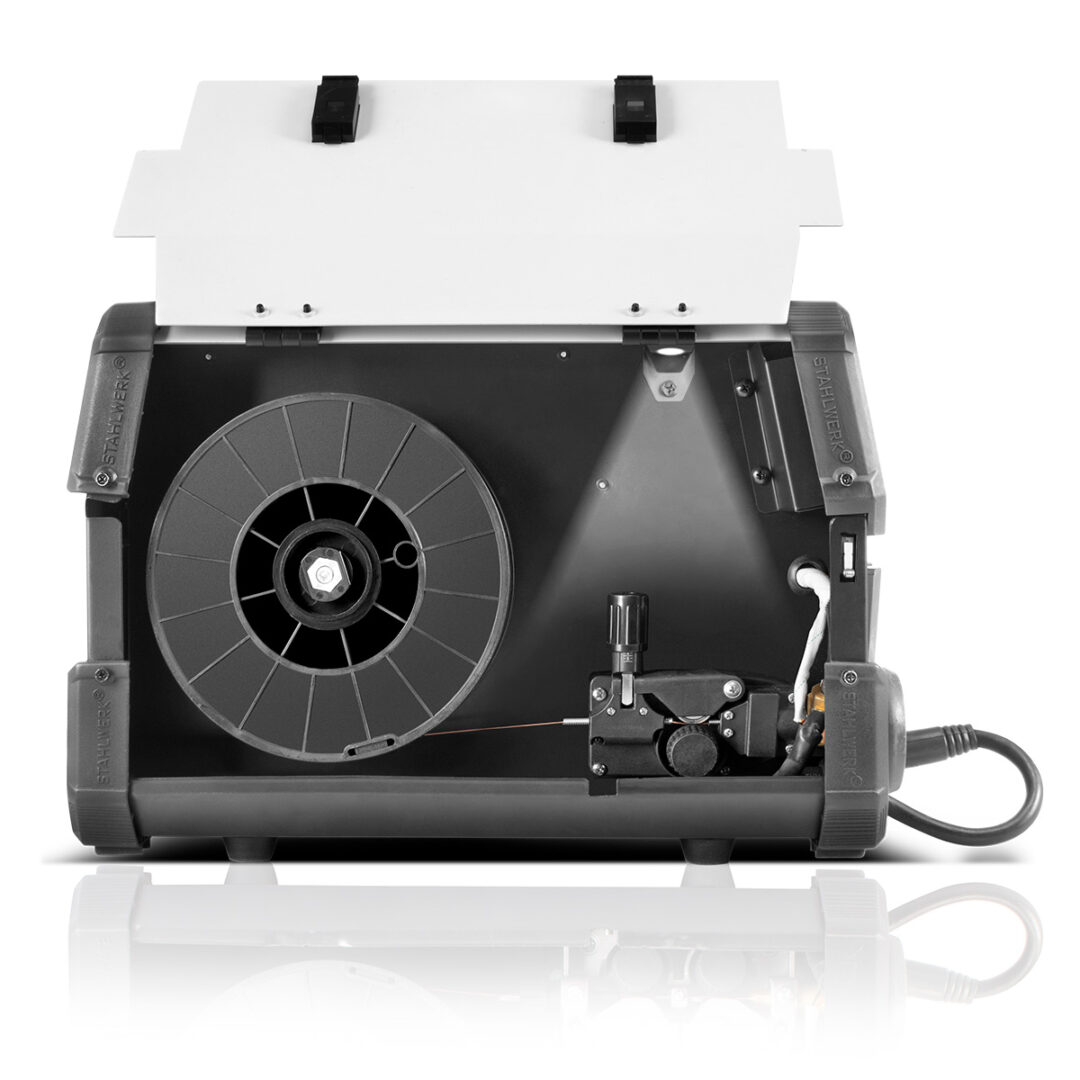

- Wire reel – Commercially available wire reels from 1kg to 5kg can be processed here. The spool mandrel can accommodate 16mm & 50mm spools.
- Wire drive roller – by simply changing the drive roller from 0.6mm, 0.8mm & 1.0mm, different wire thicknesses can be used.
- MMA electrode welding / MMA welding – is a universal welding process.

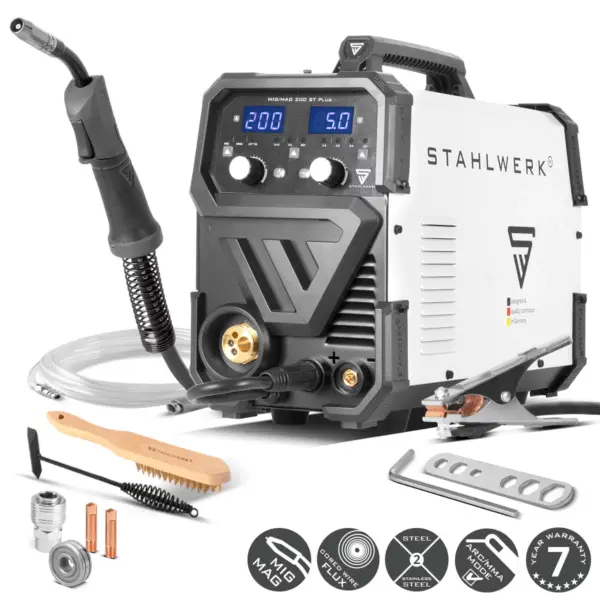

This STAHLWERK welder MIG MAG 200 ST comes with the following:
- 1 x STAHLWERK MIG 200 ST IGBT welding machine
- 1 x Professional MIG welding torch AK-15 / hose package 3 meters with Euro central connection
- 1 x 3-piece MIG accessory set (this is already pre-assembled on the MIG/MAG torch):
- 1 x gas nozzle
- 1 x contact tip 0.8mm
- 1 x gas nozzle holder
- 1 x earth cable 3 meters (ø 25 mm²)
- 1 x electrode holder 3 meters (ø 25 mm²)
- 1 x Gas connection hose with quick coupling 5 meters
- 1 x connection set for pressure reducer
- 2 x contact tip (0.8 / 1.0 each)
- 1 x installation wrench
- 1 x wire brush
- 3 x wire guide rollers 0.6 mm/0.8 mm, 1.0 mm/1.2 mm, (0.8 mm/1.0 mm is already installed in the device)
- 1 x protective cover
Learn more about gasless mig welding – Read our Blog 5 Essentials Gasless Mig Welding Tips
Smart Cooling & Overheat Protection – State of the art technology, built-in overheat protection and high performance cooling allow maximum power to be retrieved.
Flux-Cored Wire – All of our ST Series units can use flux-cored wire. This allows welding without shielding gas.
Automatic wire feed – the speed of the wire feed is automatically controlled by the set welding current.
Inductance – continuously adjustable choke, which smoothes the welding current and improves the welding quality and ignition characteristics.
