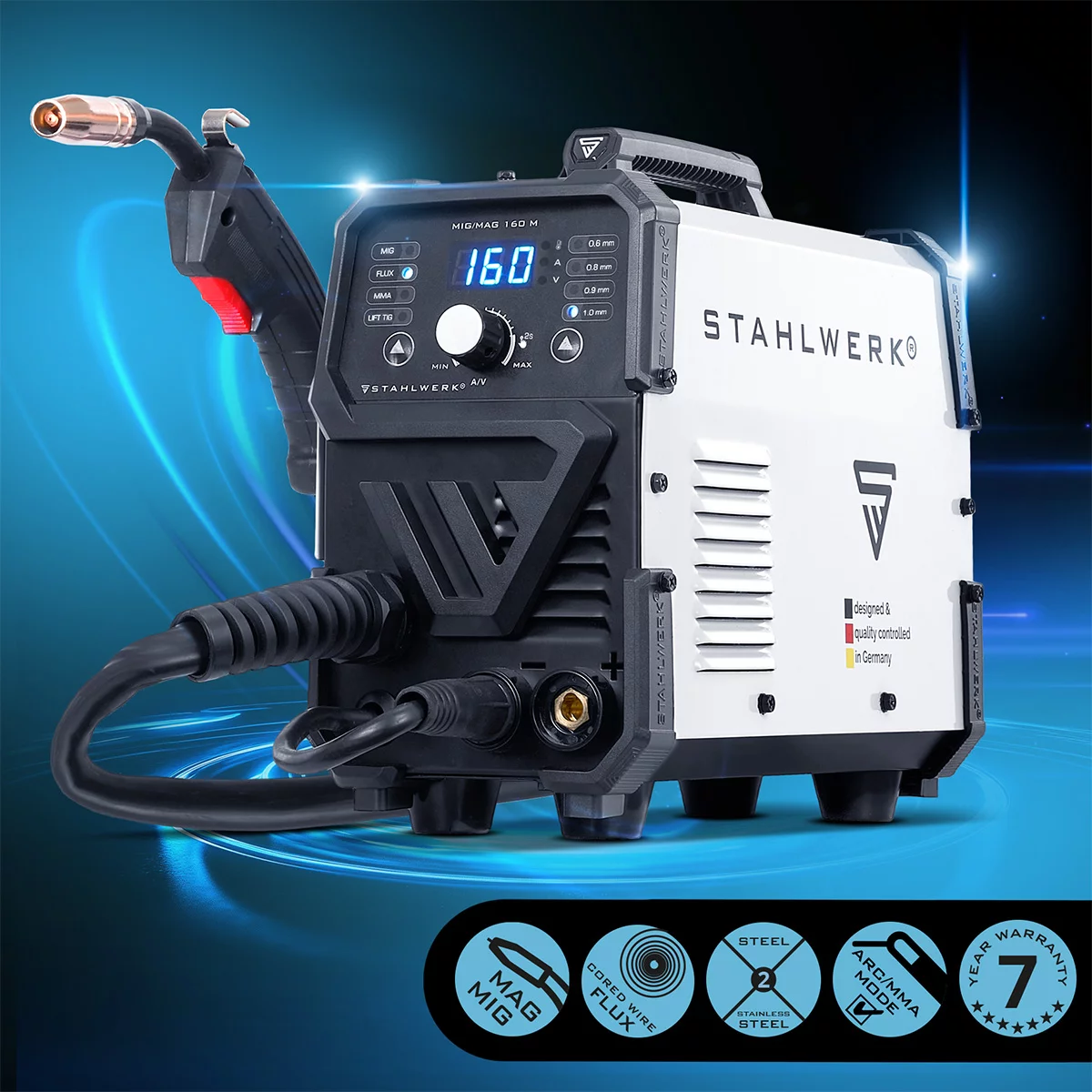

The very compact and lightweight STAHLWERK MIG/MAG-160 M gas-shielded welder operates at up to 160 amps and is suitable for MIG/MAG, Lift-TIG and E-Hand/MMA welding. One advantage of this compact combination welder, which weighs only 4.5 kg, is that flux cored wire can be used. This means that welding without shielding gas/Gasless Mig Welding is also possible.

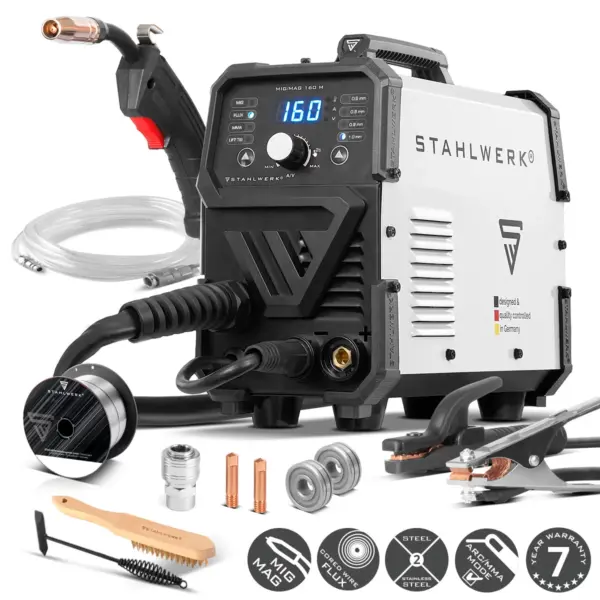

In addition to smart cooling with integrated overheating protection, the Stahlwerk Mig 160 M welder has a synergic wire feed. The speed of the wire feed is automatically controlled by the set welding current. Despite the extensive features, the welder is powerful and reliable thanks to advanced IGBT technology. In addition to an extensive accessories package, the MIG/MAG-160 M – like all other STAHLWERK units – comes with a 7-year warranty.

Device functions & components

• MIG/MAG – Metal arc welding with direct current (DC). Welding can be done with inactive/inert (MIG, e.g. argon) or with active (MAG, e.g._CO2) gases. Gas and welding wire come from one torch head, allowing welding operations to be performed with only one hand.
• Gasless Mig Welder
• Fully synergic device: The voltage (volts) and the wire feed are automatically adjusted to the set welding current. Thus, the device is very easy to use, especially for beginners.
• 5 in 1 combination device – MIG/MAG, flux cored wire, lift TIG & MMA welding is possible up to 160 A.
• IGBT Technology – Latest and most advanced transistor technology enables highest power and high duty cycle (ED)! No transformer, no MOSFET, most modern IGBT!
• Lightweight & compact design – only 4.5 kg weight and dimensions of 320 x 140 x 260 mm. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying.

Equipment features & benefits

• Highest Efficiency & Power – Single phase AC (230 V) power supplies the welder and allows output power of true 160 amps.

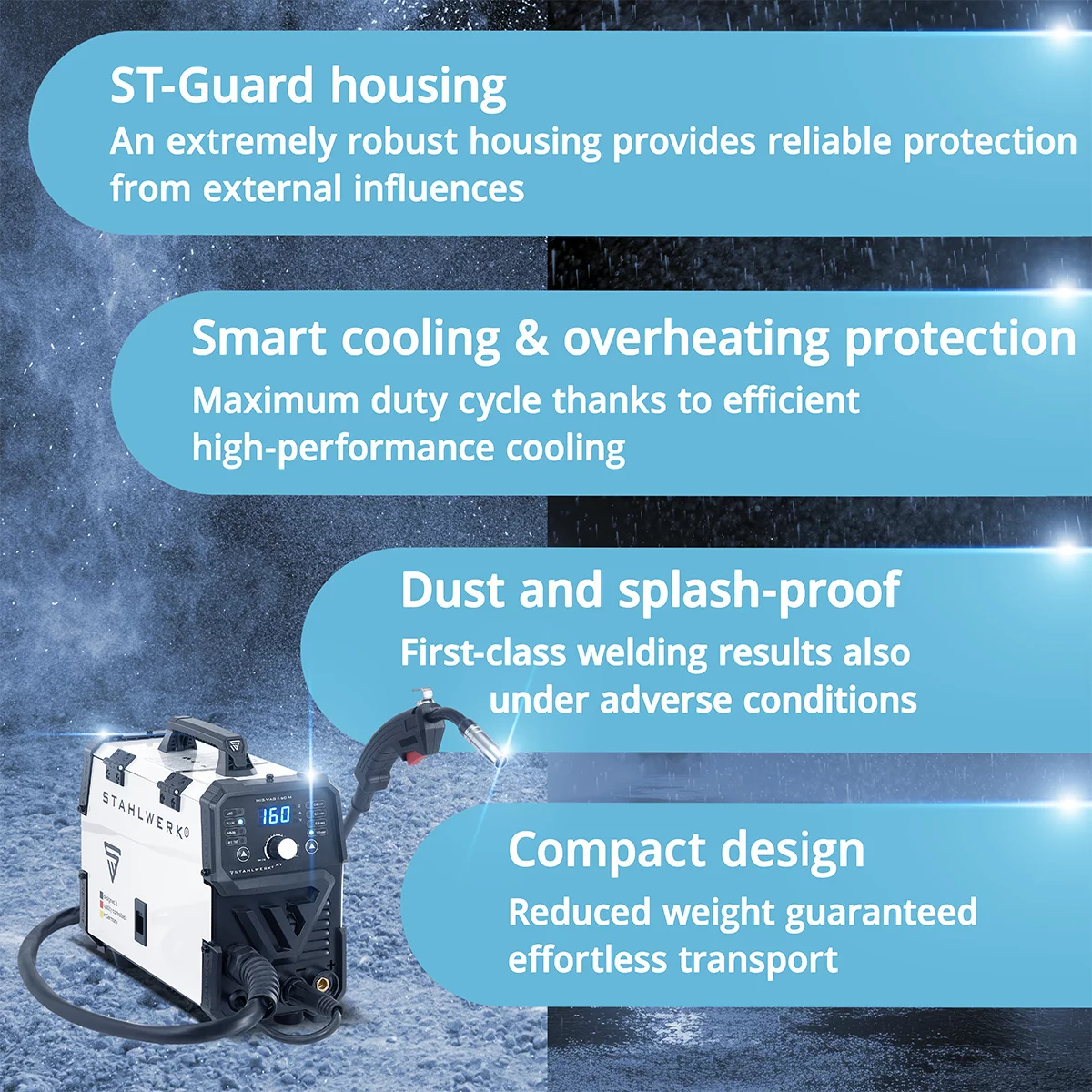

• Smart Cooling & Overheat Protection – State-of-the-art technology, built-in overheat protection, and high-performance cooling allow for maximum power retrieval.
• Flux-Cored Wire – All of our units can use flux-cored wire. This allows welding without shielding gas.

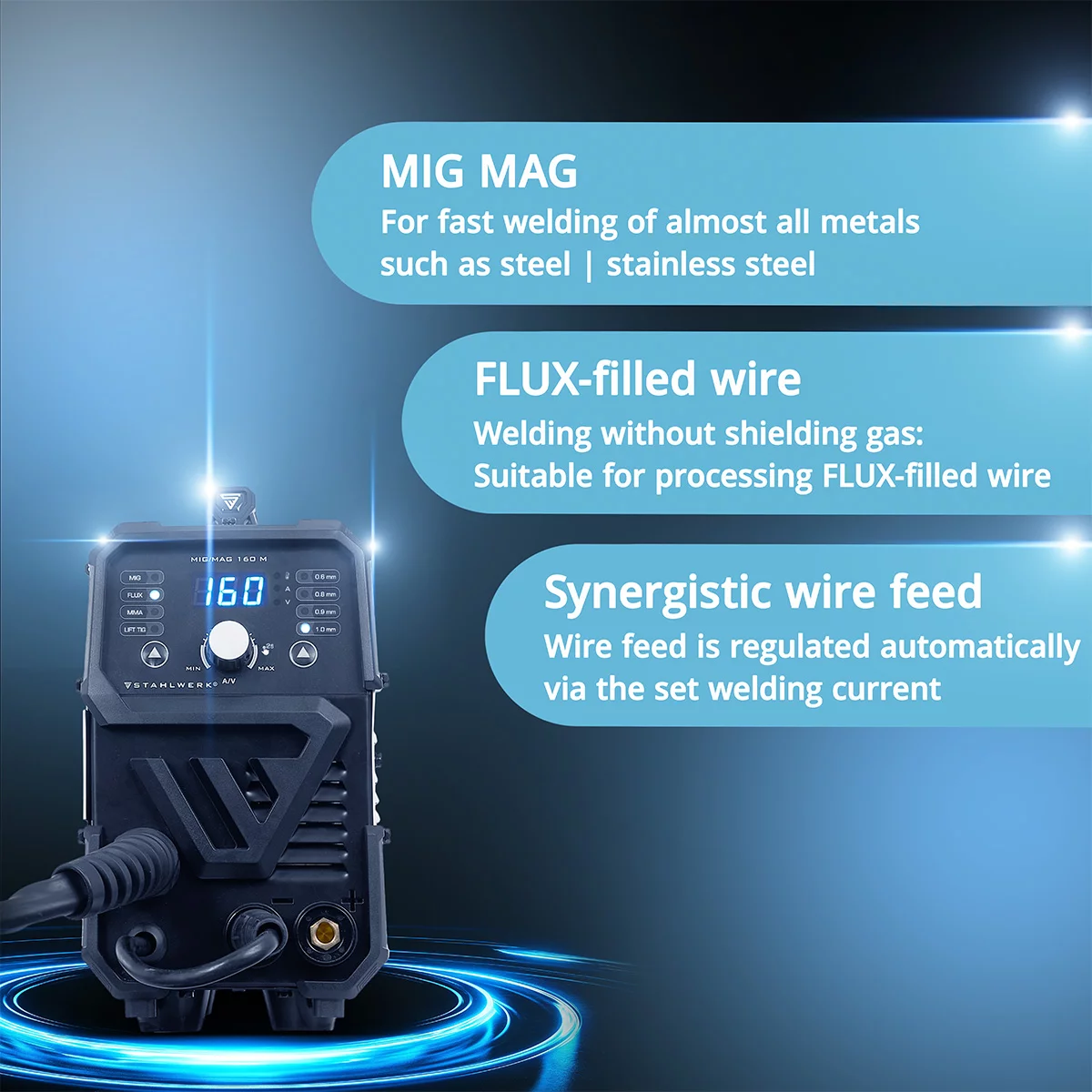

• Automatic wire feed – the speed of the wire feed is automatically controlled by the set welding current.
• Automatic voltage control (volts) – the voltage automatically adjusts to the set welding current.

• Wire coil –  1 kg wire coils can be used. The spool mandrel can accommodate 16 mm spools.
• Wire drive roller – by simply changing the drive roller, different wire thicknesses can be used (0.6 mm / 0.8 mm / 1.0 mm).
• MMA electrode welding / MMA welding – is a universal welding process. No shielding gas is required.
• Lift TIG – With a separately available (not included) hose package, the unit can also be used to weld DC TIG (strike ignition).
• Fullsynergic 5 in 1 combination -welder stahlwerk mig mag

Note: Stahlwerk mig mag 160 Observe the correct amperage for a perfect welding result:
For welding with 0.6 wire, at least 60 amps are required
For welding with 0.8 wire at least 80 amps are required
Welding with 1.0 wire requires at least 100 amps

Technical Data
