Stahlwerk MIG MAG Pro 300 Welding Machine – Combination Machine

Stahlwerk MIG MAG Pro 300 Welding machine – With 300 amps of power and numerous functions, the STAHLWERK MIG MAG Pro 300 welding machine promises maximum performance even under the toughest conditions. Equipped with the latest generation of state-of-the-art IGBT technology, the high-quality welding machine impresses with maximum power and efficiency.

The versatile combination welder has a synergic wire feed, works with up to 300 A and is suitable for MIG MAG welding as well as for lift TIG and MMA/ARC applications – so welding without shielding gas is also possible.

The device has numerous welding parameters and enables precise welding of steel and stainless steel. In addition, aluminum can also be welded thanks to the integrated pulse function. A powerful 4-roller drive ensures reliable wire feed, which also transports thicker welding wires continuously and safely during MIG MAG Pro welding.

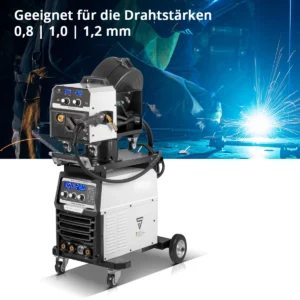

The gas-shielded arc welder is suitable for 0.8 / 1.0 / 1.2 mm wire thicknesses.

Functions of the Stahlwerk MIG MAG Pro 300 Welding machine

• 3-in-1 combination welding machine – MIG MAG / Lift TIG / MMA
• Pulse function – The pulse function allows aluminum to be welded. Less heat is introduced into the workpiece.
• MIG MAG Pro – Gas metal arc welding with direct current (DC). Welding can be carried out with inactive/inert (MIG: e.g. argon) or active (MAG: e.g. CO2) gases. Gas and welding wire come from one torch head and enable welding work to be carried out with just one hand.

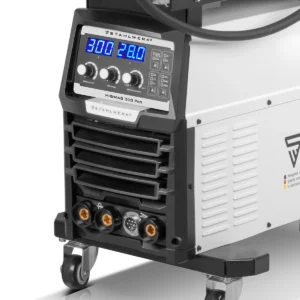

• Digital display – The set welding parameters can be easily read on a clear digital display. The various modes can be set quickly using the intuitive menu.
• Synergic wire feed – The wire feed speed is controlled fully automatically via the welding current.
• 4-roller drive – A powerful 4-roller drive ensures reliable wire feed, which also transports thicker welding wires continuously and safely during MIG MAG welding.

Features & benefits of the Stahlwerk MIG MAG Pro 300 Welding machine

• IGBT technology – Latest and most modern transistor technology enables highest performance and duty cycle (ED)! No transformer, no MOSFET, state-of-the-art IGBT!
• 2T/4T – determines the control of the operating mode and offers extended control over the current flow. In 2T mode, the ignition remains active until the button on the burner is released. In 4T mode, the arc is ignited after pressing and releasing the button once. After pressing and releasing the button again, ignition is terminated.
• Lightweight & compact design – Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
• Smart cooling & overheating protection – Integrated overheating protection and high performance cooling enable maximum performance to be achieved.
• ST-Guard housing – ergonomic, robust and reliable. The control panel is easily accessible and intuitive to use.

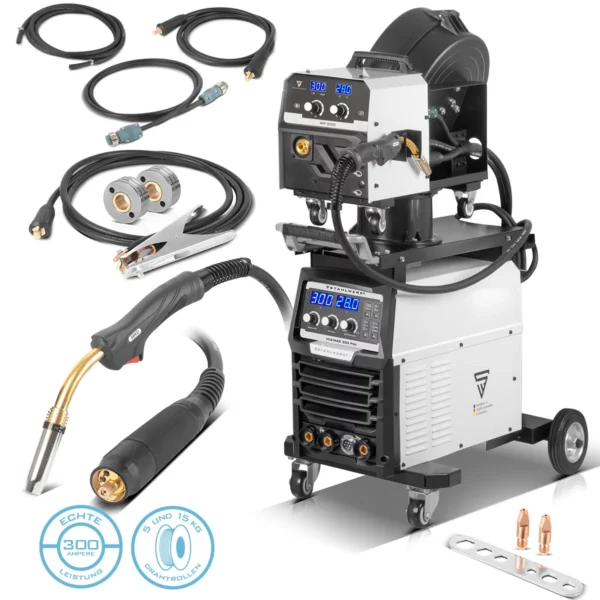

Stahlwerk MIG MAG Pro 300 Welding Machine – In the Package

• 1 x STAHLWERK MIG MAG Pro 300 welding machine
• 1 x WF-500 wire feed unit
• 1 x 7-pin control cable
• 1 x 35 mm² power connection cable with 13 mm mandrel plug
• 1 x gas connection hose (open on both sides with pre-assembled hose clamps)
• 1 x equipment trolley with 2x steerable and 2x rigid castors, holding device for gas cylinders
• 2 x 1.6 mm, 2 x 0.8/1.0 V wire guide rollers (2 x 1.2/1.6 mm already installed in the appliance)
• 1 x 36KD hose package 3 m
• 1 x contact tip 1.0 and 1.6 mm each (1.2 mm pre-assembled)
• 1 x contact tip assembly tool
• 1 x earth terminal 3 m, 35 mm² with 13 mm pin plug
