Magnaflux UV lights are crucial in enhancing the visibility of fluorescent particles, making them glow brightly against dark surfaces. In the realm of non-destructive testing (NDT), magnetic particle inspection has become an indispensable method for identifying surface and near-surface defects in ferromagnetic materials.
Our experience shows that choosing the right UV light can make all the difference in inspection quality. Whether you’re testing welds aircraft components or automotive parts proper illumination is crucial for spotting even the tiniest defects. Want to know what makes these specialised lights so effective for NDT inspections? Let’s explore how UV technology transforms invisible flaws into clearly visible indicators making quality control more reliable and efficient.
Key Takeaways
- Magnaflux UV lights are essential tools in non-destructive testing (NDT), operating at 365 nanometres to illuminate fluorescent particles and detect surface/subsurface defects in ferromagnetic materials.
- There are two primary types of UV light sources: LED UV lamps (offering instant-on capability and 30,000-hour lifespan) and Mercury Vapour lamps (providing high-intensity output for large inspection areas).
- Proper safety protocols include wearing UV-blocking safety glasses, maintaining minimum safe distances, and ensuring ambient light levels remain below 2 foot-candles during inspections.
- The technology enables detection of defects as small as 30 microns and can identify flaws up to 6mm deep, making it highly effective for quality control in automotive, aerospace, and industrial applications.
- Regular maintenance and calibration are crucial, with daily UV intensity checks required and equipment needing to be stored in controlled environments (20-25°C) to ensure optimal performance.
What Are Magnaflux UV Lights?
Magnaflux UV lights are specialised inspection tools that emit ultraviolet radiation at 365 nanometres to illuminate fluorescent magnetic particles during non-destructive testing. These lights enable technicians to detect surface and subsurface defects in ferromagnetic materials with enhanced visibility and precision.
How UV Light Works in NDT Testing
UV light interacts with fluorescent magnetic particles by exciting their phosphors, causing them to emit visible light in the 530-560 nanometre range. The process creates a bright yellow-green glow that contrasts against the dark background of the test surface. This stark contrast makes microscopic defects visible when:
- Magnetic particles collect around discontinuities
- Fluorescent dyes absorb UV energy
- Particles emit visible light
- Ambient light levels stay below 2 foot-candles
Key Components of UV Light Systems
A complete UV light inspection system contains these essential elements:
- LED or mercury vapour UV source
- Focusing lens assembly
- UV-blocking filters
- Light intensity controls
- Thermal management system
- Protective housing
Component Specifications | Standard Requirements |
---|---|
UV-A Wavelength | 365 ±5 nm |
Minimum Intensity | 1,000 µW/cm² at 15″ |
Beam Diameter | 4-8 inches at 15″ |
Warm-up Time | <5 minutes |
Operating Temperature | 5-40°C |
The UV light assembly incorporates specific filters to block visible light transmission while maximising UV output. Modern LED systems provide instant-on capability with consistent intensity levels throughout their operational lifespan of 5,000+ hours.
Benefits of Using Magnaflux UV Lights
Magnaflux UV lights provide essential advantages in magnetic particle inspection by improving detection accuracy and operational efficiency. These specialised lights transform the way technicians identify defects in ferromagnetic materials.
Enhanced Flaw Detection
UV lights create optimal conditions for detecting microscopic flaws during magnetic particle inspection. The fluorescent particles glow brightly under UV illumination at 365 nanometres, revealing surface defects as small as 30 microns. This enhanced visibility enables technicians to:
- Identify hairline cracks in critical components
- Detect subsurface discontinuities up to 6mm deep
- Spot corrosion patterns in early stages
- Examine complex geometries with precision
Cost-Effective Inspection Method
Magnaflux UV inspection delivers significant cost benefits through its efficient detection capabilities. The process reduces inspection time by 40% compared to conventional visual methods while maintaining high accuracy rates. Key economic advantages include:
- Minimised material waste through early defect detection
- Reduced labour hours per inspection cycle
- Lower equipment maintenance costs
- Extended component life through preventive maintenance
Cost Factor | Savings Percentage |
---|---|
Labour Time | 40% reduction |
Material Waste | 35% reduction |
Maintenance Costs | 25% reduction |
Equipment Downtime | 30% reduction |
The combination of improved detection capabilities with operational efficiency makes UV magnetic particle inspection a valuable investment for quality control processes.
Types of Magnaflux UV Light Sources
Magnaflux UV light sources come in two main categories, each offering specific advantages for magnetic particle inspection. These light sources emit ultraviolet radiation at 365 nanometres to illuminate fluorescent particles effectively.

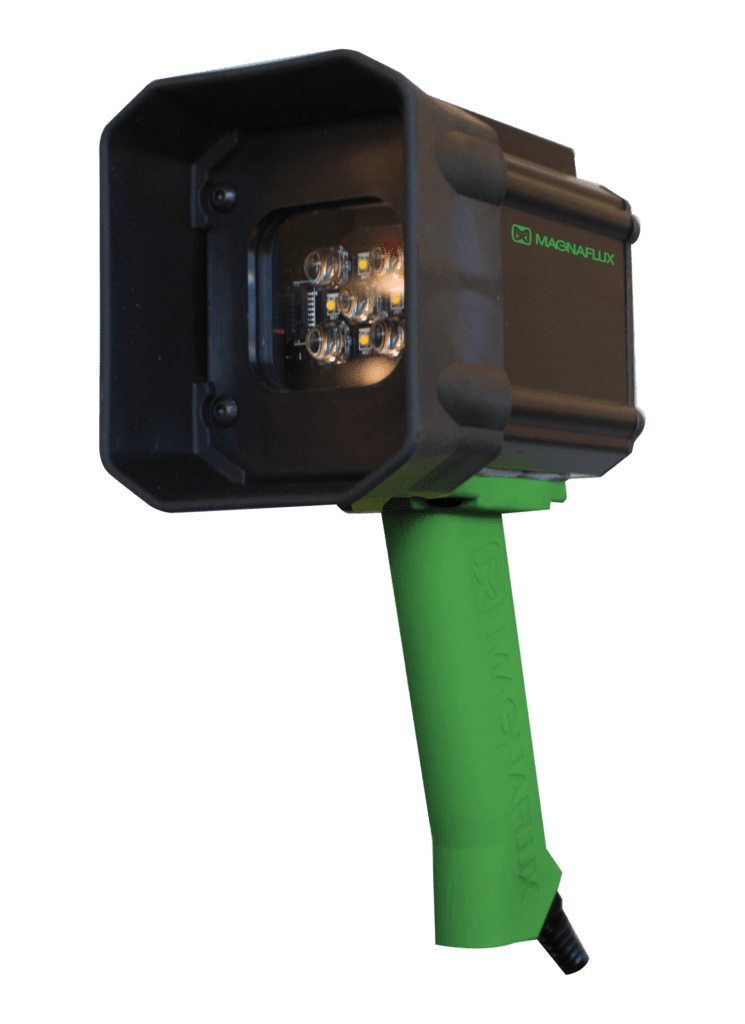

LED UV Lamps
LED UV lamps represent the latest advancement in magnetic particle inspection technology. These lamps feature instant-on capabilities with no warm-up time required. LED systems consume 75% less energy than traditional UV sources while delivering consistent UV-A output over their 30,000-hour operational life. The compact design allows for enhanced manoeuvrability in tight spaces during inspection processes.
Key characteristics of LED UV lamps:
- Zero warm-up time for immediate inspection readiness
- Consistent 365nm wavelength output
- Operating temperature range of -10°C to 40°C
- Lightweight construction at 0.5kg average weight
- Built-in cooling systems for extended operation
Mercury Vapour Lamps
Mercury vapour lamps serve as traditional UV light sources in magnetic particle inspection. These lamps generate UV radiation through mercury vapour excitation inside a specialised glass tube. The technology produces high-intensity UV output suitable for large inspection areas.
Notable features of mercury vapour lamps:
- High UV-A intensity levels reaching 5000 µW/cm²
- 5-10 minute warm-up period for optimal performance
- 2000-3000 hour typical bulb lifespan
- Robust construction for industrial environments
- Filtered output to minimise visible light interference
Feature | LED UV Lamps | Mercury Vapour Lamps |
---|---|---|
Warm-up Time | Instant | 5-10 minutes |
Lifespan | 30,000 hours | 2,000-3,000 hours |
Energy Usage | 25% of traditional | 100% baseline |
Heat Output | Low | High |
Initial Cost | Higher | Lower |
Operating Cost | Lower | Higher |
Best Practices for Using UV Inspection Lights
UV inspection lights require specific protocols and conditions to maximise detection accuracy while maintaining operator safety. Here’s a comprehensive guide to implementing effective UV light inspection procedures.
Safety Protocols
- Wear UV-blocking safety glasses rated for 365nm wavelength protection
- Use protective gloves to prevent skin contact with magnetic particles
- Install proper ventilation systems to remove inspection material fumes
- Place UV hazard warning signs in inspection areas
- Keep a minimum distance of 38cm between the UV source and inspection surface
- Conduct regular equipment checks for UV light leakage or damage
- Store UV lights in protective cases when not in use
- Train operators on proper UV light handling techniques
- Set up inspection areas in dark environments with ambient light below 2 foot-candles
- Maintain UV light intensity at 1,000 µW/cm² at 38cm from the inspection surface
- Clean inspection surfaces thoroughly before testing
- Position UV lights at a 45-degree angle to the inspection surface
- Allow LED UV lights 60 seconds to stabilise before inspection
- Check UV intensity levels every 8 hours during operation
- Keep inspection areas free from dust particles
- Control room temperature between 20-25°C for optimal particle mobility
- Monitor humidity levels between 40-60% to prevent particle clumping
Parameter | Recommended Value |
---|---|
Ambient Light | <2 foot-candles |
UV Intensity | 1,000 µW/cm² |
Distance | 38cm |
Temperature | 20-25°C |
Humidity | 40-60% |
Maintaining Your Magnaflux UV Equipment
Proper maintenance of Magnaflux UV equipment extends its lifespan and maintains inspection accuracy. Regular care keeps the equipment running at peak performance while preventing costly repairs.
Cleaning and Storage
UV inspection lights require specific cleaning procedures to maintain optimal performance:
- Clean the lens with lint-free cloths before each use
- Remove dust particles using compressed air at 30 PSI
- Wipe external surfaces with isopropyl alcohol solutions
- Check cables for wear marks or exposed wires
- Store equipment in protective cases at 20-25°C
Keep UV lamps away from moisture, extreme temperatures and direct sunlight during storage. Place silica gel packets in storage cases to absorb excess humidity.
Calibration Requirements
Regular calibration maintains inspection accuracy and compliance with industry standards:
Calibration Task | Frequency | Acceptable Range |
---|---|---|
UV Intensity Check | Daily | 1,000-5,000 µW/cm² |
White Light Level | Weekly | <2 foot-candles |
Distance Verification | Monthly | 15 ±1 inches |
Radiometer Calibration | Annually | ±5% accuracy |
Key calibration steps include:
- Testing UV output intensity with certified radiometers
- Measuring background white light levels
- Documenting readings in calibration logs
- Adjusting light positioning and settings
- Verifying results with standard reference panels
- Impact damage
- Lamp replacement
- 500 hours of operation
- Exposure to extreme conditions
- Failed performance checks
Conclusion
Magnaflux UV lights have revolutionised magnetic particle inspection by offering unmatched precision in detecting surface and subsurface defects. We’ve seen how these specialised tools significantly enhance the inspection process while reducing operational costs and improving efficiency.
Whether choosing LED UV lamps for their energy efficiency or mercury vapour lamps for their high-intensity output we must prioritise proper maintenance and safety protocols. By following industry best practices and maintaining our equipment regularly we can ensure reliable and accurate inspections for years to come.
Looking for reliable welding services in Belfast UK? Get in touch with our expert team today to discuss your requirements and discover how we can support your welding needs.
Frequently Asked Questions
What is magnetic particle inspection?
Magnetic particle inspection is a non-destructive testing method used to detect surface and near-surface flaws in ferromagnetic materials. It uses magnetic particles and UV lights to identify defects that might not be visible to the naked eye.
What are Magnaflux UV lights?
Magnaflux UV lights are specialised inspection tools that emit ultraviolet radiation at 365 nanometres. They work by causing fluorescent magnetic particles to glow bright yellow-green, making microscopic defects visible against a dark background.
What are the types of UV light sources available?
There are two main types: LED UV lamps and mercury vapour lamps. LED lamps offer instant-on capabilities, energy efficiency, and longer life (30,000 hours), whilst mercury vapour lamps provide high-intensity output but require warm-up time and have shorter lifespans (2,000-3,000 hours).
How much energy do LED UV lamps save?
LED UV lamps consume 75% less energy compared to traditional mercury vapour lamps. This significant reduction in energy consumption makes them a more cost-effective and environmentally friendly option for magnetic particle inspection.
What safety measures should be followed during UV inspection?
Essential safety measures include wearing UV-blocking safety glasses, using protective gloves, and ensuring proper ventilation. Inspections should be conducted in dark environments with controlled temperature and humidity levels.
How often should Magnaflux UV equipment be maintained?
Regular maintenance includes daily UV intensity checks and monthly distance verifications. The equipment should be cleaned with lint-free cloths and isopropyl alcohol solutions. UV lamps typically need replacement after 500 hours of operation.
What are the benefits of using Magnaflux UV lights?
Magnaflux UV lights improve detection accuracy, reduce inspection time by 40%, minimise material waste, and lower labour hours. They enable technicians to detect hairline cracks, subsurface discontinuities, and early-stage corrosion patterns with precision.
How long do UV lamps typically last?
LED UV lamps can last up to 30,000 hours, whilst traditional mercury vapour lamps typically last between 2,000-3,000 hours. The significant difference in lifespan makes LED lamps more cost-effective in the long term.
