STORM VISION 4-1 PAPR Air Fed Welding Helmet – Top Quality from Helvi

STORM VISION 4-1 PAPR Air Fed Welding Helmet

STORM VISION 4-1 PAPR Air Fed Welding Helmet is an  AUTO-DARKEING WELDING MASK WITH POWERED AIR PURIFYING RESPIRATOR (4 SENSORS) – TRUE COLOUR

This is an exceptional quality air fed welding helmet.  This is one of the best air fed welding masks  we offer.

FILTER TRUE-COLOR

Optical Class 1/1/1/1
Filter size 133 x 114 x 9 mm
Viewing area 97 x 62 mm – 4 Sensors – Light Shade 4
Darkness Shade  5 – 8 / 9 – 13 variable
Grinding YES
Protection Adjustment Internal, variable shade
UV/IR Protection up to DIN16
Switching time from Light to Dark 1/25000 s
Switching time from Dark to Light 0.05-1.0 s
Sensitivity/Delay adjustable by digital control (10 levels)
Power Supply Solar cells and 2 x CR2450 Lithium battery
ON/OFF manual ON – Automatic OFF
Low Battery alarm YES, red pilot lamp
Min Amp ≥ 2A AC – DC

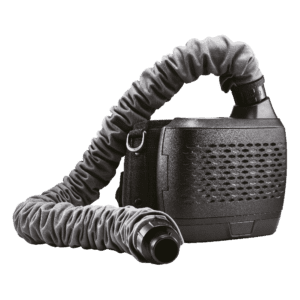

RESPIRATOR SPECIFICATIONS
2 levels airflow rate: 170 lpm and 210 lpm
Filter efficiency: 99,97%
Battery duration: 9 h (170 lpm)
Battery charge time: 1 h
Weight: 1kg
Approval: EN12941- TH2

OPTIONAL AVAILABLE FOR RESPIRATOR – Give us a call for information about these options 0289046 0541

PN 21905161 Additional GAS FILTER (mandatory for Stainless Steel welding)
PN 21905156 EXTENDED BATTERY FAST CHARGE (14 hours continuous welding. Highly recommended in case of Gas Filter use)

To download the operating instructions, please go to Helvi Safety PAPR.
