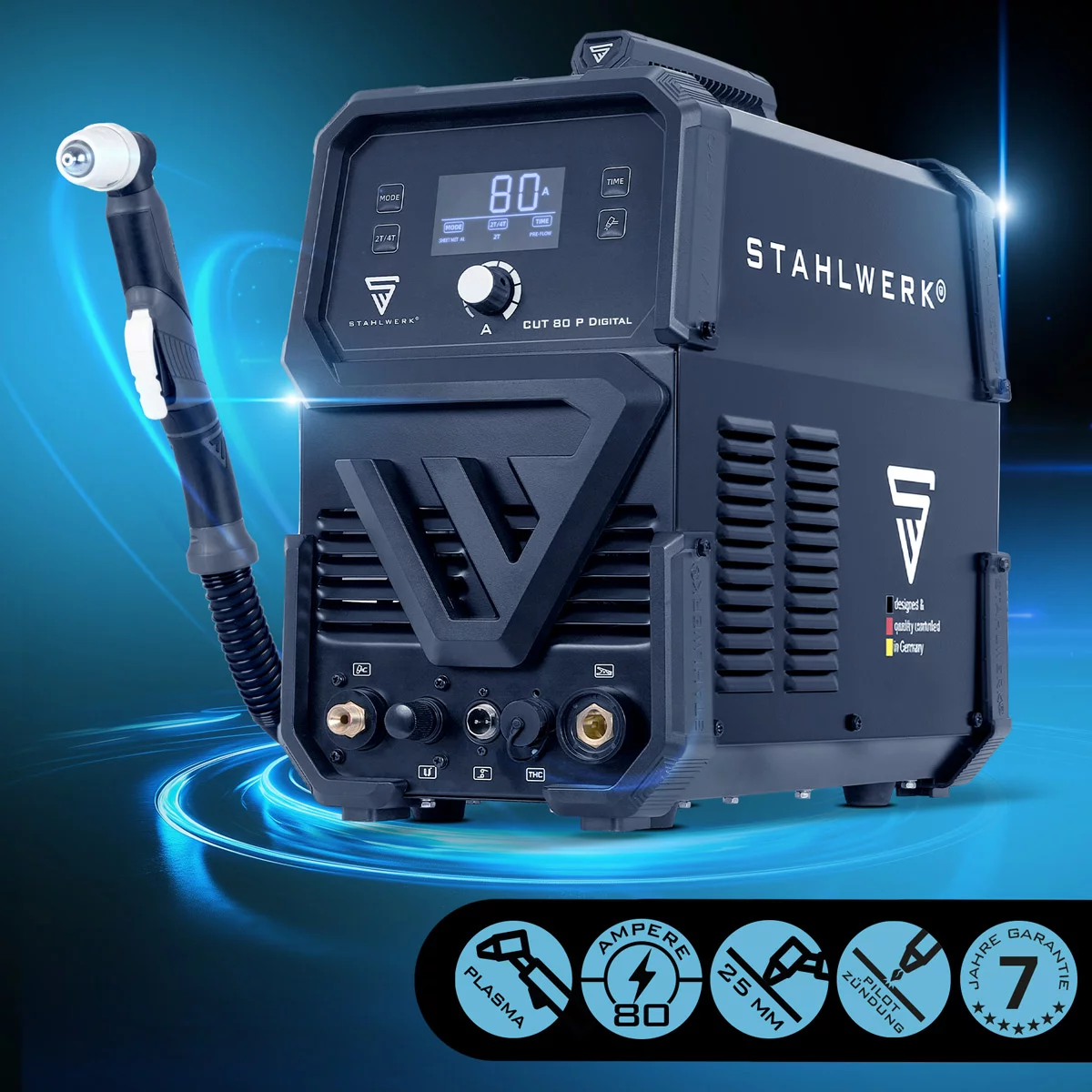

STAHLWERK plasma cutter CUT 80 P Digital | 80 A inverter plasma cutter | HF pilot ignition | digital display | THC interface for CNC | cutting capacity up to 25 mm | plasma cutter with 2T/4T function  Part #6934

The STAHLWERK Plasma Cutter CUT 80 P Digital cutter is a powerful and compact cutting inverter for the precise cutting of electrically conductive metals. The infinitely variable cutting current of 30 to 80 A covers a wide range of applications – from thin sheets to solid structural steel plates. The HF pilot ignition ensures convenient, contactless ignition of the plasma arc; alternatively, a contact start is available.

Depending on the material, cuts of up to 25 mm are possible with mild steel (ST37), 10-15 mm with stainless steel (V2A/V4A) and 8 mm with aluminum. Even painted and slightly rusted workpieces can be processed cleanly and efficiently. The integrated smart cooling, overheating protection and IP21S protection class ensure reliable and durable operation.

Thanks to the THC interface, the CUT 80 P Digital can be operated with CNC systems to automatically regulate the torch distance to the workpiece according to the arc voltage. The CUT 80 P Digital also has the “MESH METAL” and “SHEET METAL” operating modes. The “MESH METAL” mode is particularly suitable for workpieces with a grid structure or interruptions where the arc may lose contact for a short time. The “SHEET METAL” mode is recommended for continuous sheets where a uniform cut is guaranteed.

The STAHLWERK CUT 80 Pilot IGBT plasma cutter is supplied with a comprehensive accessory package and is ready for immediate use. The air pre-flow and post-flow times can be set individually on the device. A longer post-flow time improves cooling and thus contributes to extending the service life of the wearing parts.

Functions of the Stahlwerk Plasma Cutter CUT 80 P Digital:

• Plasma / CUT – A plasma jet is generated by means of electricity, which melts the material, which is then removed with compressed air. All conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and many more can be cut precisely and effortlessly.
• Cutting thickness – Depending on the material, cuts of up to 25 mm are possible. Mild steel ST37 up to 25 mm, V2A or V4A up to 10-15 mm, aluminum up to 8 mm.
• Pilot ignition – High-frequency (HF) pilot ignition for first-class ignition behavior. No contact with the workpiece necessary! The pilot flame establishes the arc. This torch can be operated with a spacer included in the scope of delivery.
• Cutting current – stepless adjustment from 30 to 80 A. A THC interface enables connection to CNC gantry systems and automatic control of the torch distance via the arc voltage – ideal for precise series and contour cuts.
• Operating mode “MESH METAL” – is particularly suitable for workpieces with a grid structure or interruptions where the arc may lose contact for a short time.
• SHEET METAL” operating mode – recommended for continuous sheets where a uniform cut is guaranteed.
• Pre-flow and post-flow setting – This function allows the air pre-flow and post-flow time to be set individually.

Device features & advantages of the Stahlwerk Plasma Cutter CUT 80 P Digital

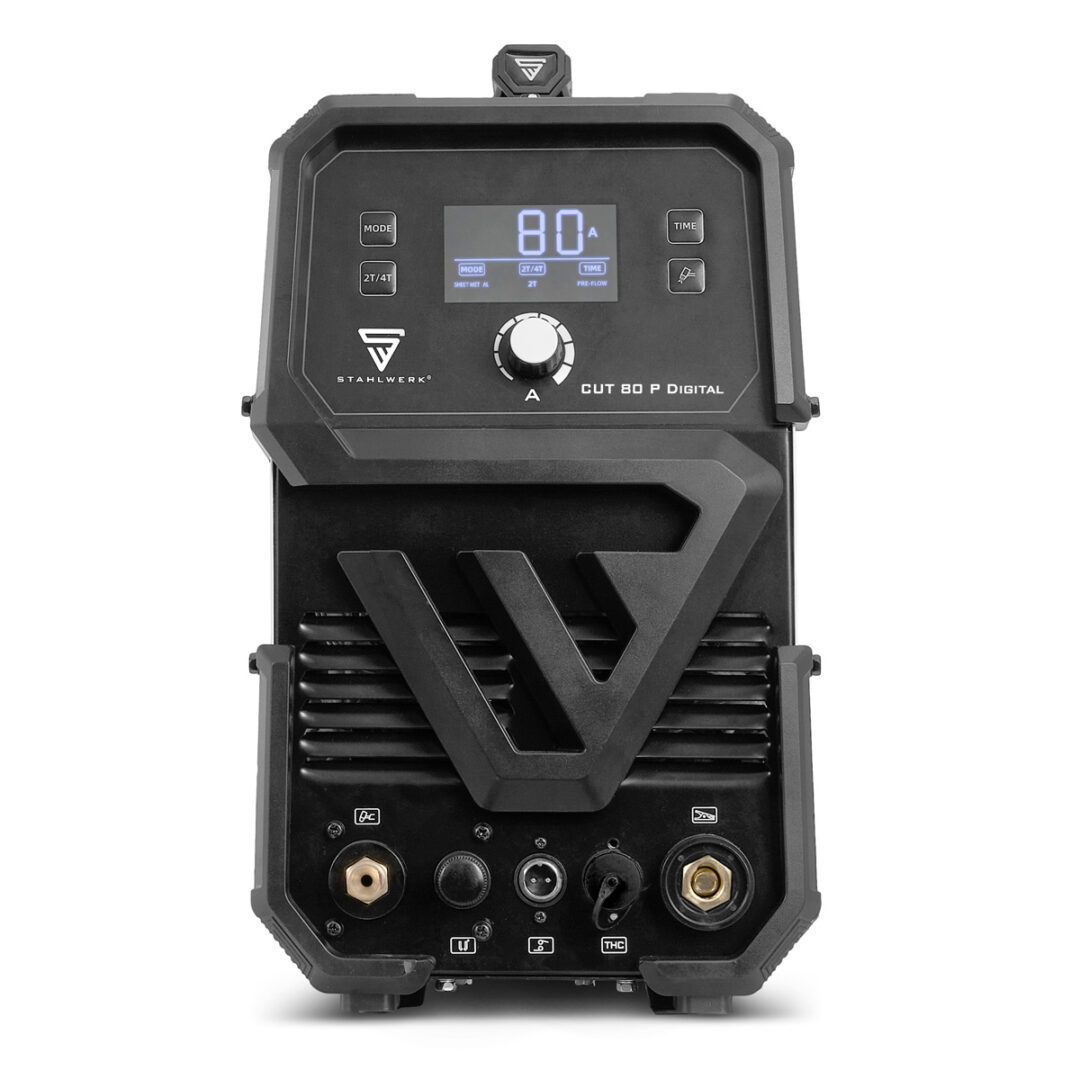

• Convenient operation – Clearly structured front panel with digital display, 2T/4T switchover, gas check and post-flow time makes it easy to set all relevant parameters.
• IGBT technology – The latest and most modern transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!

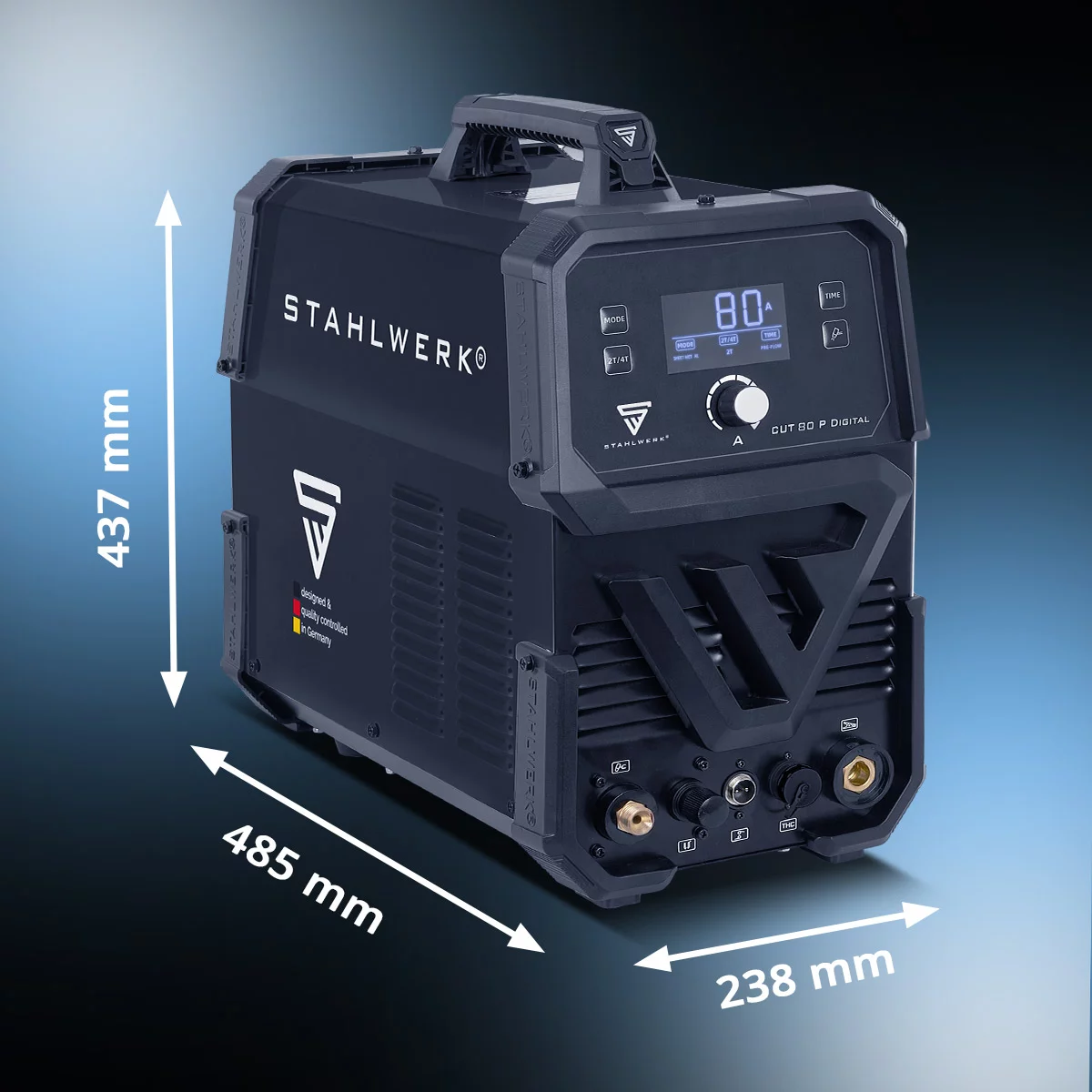

• Lightweight & compact design – With a weight of 19.6 kg and dimensions of 485 x 238 x 437 mm, the device is easy to transport and ideally suited for demanding cutting work. Innovative IGBT transistors save space and weight compared to the old MOSFET technology.
• Highest efficiency & performance – three-phase alternating current (400 V) supplies the device and allows an output power of 80 amps.
• Smart cooling and overheating protection – State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum power to be called up.

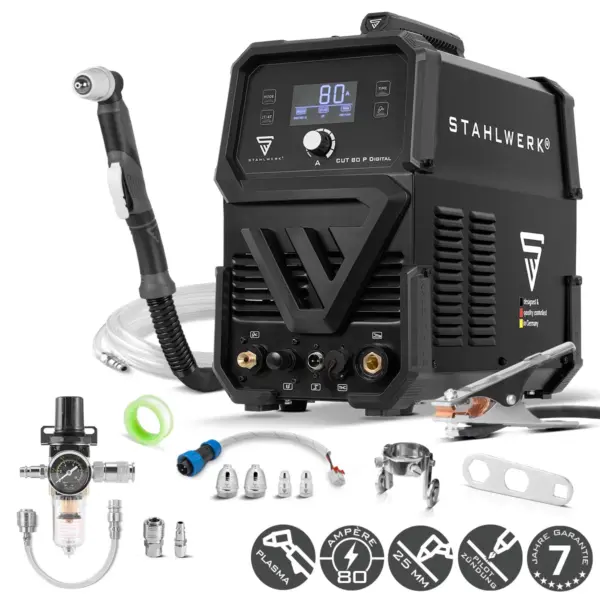

What does the Stahlwerk Plasma Cutter CUT 80 P Digital machine come with?

• 1 x STAHLWERK CUT 80 P Digital plasma cutter
• 1 x Professional plasma hose package 3 meters with P80 torch
• 1 x THC controller cable
• 1 x Guide carriage with spacer
• 1 x 4-piece plasma accessory set (already pre-assembled on the plasma torch):
  • 1 x plasma nozzle
  • 1 x plasma electrode
  • 1 x ceramic cap
• 1 x earth cable 3 meters
• 1 x water separator with pressure gauge and snap-on quick couplings from the device to the water separator, incl. 4-piece connection set
• 1 x Air connection hose with snap-on quick coupling 5 meters
• 1 x protective cover
• 1 x Teflon tape

The Stahlwerk Plasma Cutter CUT 80 P Digital has a 7 year warranty on the power source.
