STAHLWERK Plasma cutter CUT 40 P IGBT | Plasma Cutter | Plasma cutter with 40 A and pilot ignition

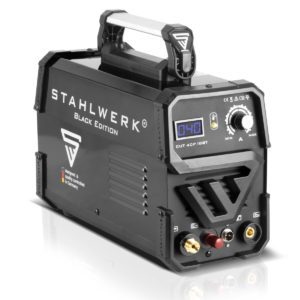

STAHLWERK Plasma cutter CUT 40 P IGBT

STAHLWERK Plasma cutter CUT 40 P IGBT – Plasma cutter with 40 A and pilot ignition

The STAHLWERK CUT 40 Pilot IGBT plasma cutter boasts a robust 40 amp output and features a high-frequency (HF) pilot ignition that ensures precise and superior ignition performance. This plasma cutter can handle a variety of materials, offering a cutting capacity of up to 10 mm for mild steel ST37, up to 7 mm for stainless steel grades V2A and V4A, and up to 4 mm for aluminum. It is compatible with all standard conductive metals, including painted sheet metal and rust film.

The cutting current is adjustable from 15 to 40 amps, allowing for flexibility across different applications. The device is compact, featuring smart cooling and overheating protection, making it both safe and easy to transport with a weight of just 7.5 kg. The STAHLWERK CUT 40 Pilot IGBT comes complete with a comprehensive set of accessories, enhancing its usability right out of the box.

Device functions & components

• Plasma / CUT – A plasma jet is generated by means of electricity, which melts the material, which is then removed with compressed air. This allows effortless precise cutting of all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and many more.
• Cut thickness – cut-offs are possible up to 10 mm depending on the material. Mild steel ST37 up to 10 mm, V2A or V4A up to 7 mm, aluminum up to 4 mm.
• Pilot ignition – High frequency (HF) pilot ignition for first-class ignition behavior. No contact with the workpiece necessary! The pilot flame establishes the arc. This torch can be operated with a spacer, which is included in the delivery.

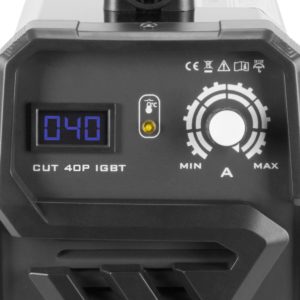

• Cutting current – Stepless adjustment from 15 to 40 A.
• Air after-run – After cutting is complete, air automatically flows to cool the torch and reduce nozzle and electrode wear.
• High quality guide carriage / roller carriage / spacer for P60 plasma torch, allows precise cutting and provides consistent torch position.

Device features & advantages of the STAHLWERK Plasma cutter CUT 40 P

• IGBT Technology – Latest and most advanced transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!

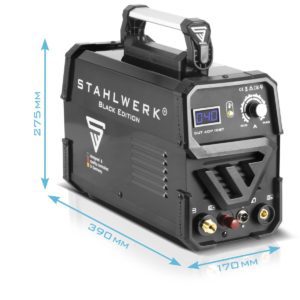

• Lightweight & Compact Design – Weighing only 7.5 kg and measuring 390 x 170 x 275 mm, the unit is ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!
• Highest efficiency & power – Single phase AC power (230 V) supplies the unit and allows an output power of real 40 amps.
• Smart Cooling & Overheat Protection – State-of-the-art technology, built-in overheat protection and high performance cooling allow the maximum power to be retrieved.

What’s in the Box?

• 1 x STAHLWERK CUT 40 P plasma cutter
• 1 x plasma hose package P-60 3 m, accessory set 4-piece (already pre-assembled)
  • 1 x plasma nozzle
  • 1 x plasma electrode
  • 1 x ceramic cap
  • 1 x spacer
• 1 x earth cable 3 m
• 1 x water separator with pressure gauge and snap-on quick-release couplings
• 1 x Connecting hose with snap-on quick couplings from the device to the water separator, incl. 6-piece connection
• 1 x Air connection hose with Snap-on quick-release coupling 5 m
• 1 x Teflon tape
• 1 x protective cover
