STAHLWERK CUT 70 P plasma cutter with 70 amp pilot ignition up to 25 mm cutting capacity suitable for flash rust

The STAHLWERK CUT 70 P plasma cutter is a robust tool delivering 70 amps of power, equipped with a high-frequency (HF) pilot ignition for superior and precise ignition performance. It can slice through materials up to 25 mm thick, including structural steel ST37 up to 25 mm, stainless steel V2A or V4A up to 18 mm, and aluminum up to 16 mm. This makes it ideal for a wide range of conductive metals, as well as painted sheet metal and rusty surfaces.

The cutting current is fully adjustable from 20 to 70 amps, providing versatility for various cutting needs. Despite its powerful performance, the device remains compact and lightweight at just 11.4 kg, featuring smart cooling and overheating protection for safe operation. It comes with a comprehensive set of accessories and, like all STAHLWERK products, includes a 7-year guarantee, ensuring long-term reliability and customer satisfaction.

Device functions & components of the Stahlwerk CUT 70 P plasma cutter

• Plasma / CUT – Electricity is used to generate a plasma jet that melts the material, which is then removed using compressed air. This makes it easy to precisely cut all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and many more.
• Cutting thickness – Depending on the material, cutting thicknesses of up to 25 mm are possible. Structural steel ST37 up to 25 mm, V2A or V4A up to 18 mm, aluminum up to 16 mm.
• Pilot ignition – High frequency (HF) pilot ignition for first-class ignition behavior. No contact with the workpiece necessary! The pilot flame creates the arc. This torch can be operated with a spacer included in delivery.
• Cutting current – Continuous adjustment from 20 to 70 A.
• Air after-flow – After the cutting process has been completed, air automatically flows to cool the torch and reduce wear on the nozzle and electrode.

Device features & benefits

• IGBT technology – The latest and most modern transistor technology enables high performance when welding! No transformer, no MOSFET, the most modern IGBT!

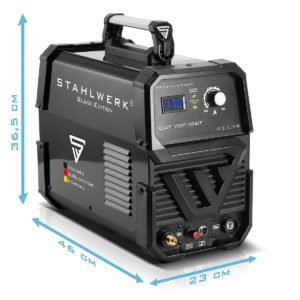

• Lightweight & compact design – Weighing just 11.4 kg and measuring 460 x 230 x 365 mm, the device is ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
• Highest efficiency & performance – Three-phase alternating current (400 V) supplies the device and allows an output power of real 70 amps.
• Smart cooling & overheating protection – State-of-the-art technology, integrated overheating protection and high-performance cooling enable maximum performance.

What comes in the STAHLWERK CUT 70 P plasma cutter box?

1 x The device plasma cutter STAHLWERK CUT 70 P

• 1 x professional plasma hose package P-80, 3 meters
• 1 x plasma accessory set 3-piece (this is already pre-assembled on the plasma torch):
  • 1 x plasma nozzle
  • 1 x plasma electrode
  • 1 x ceramic cap
• 1 x ground cable 3 meters
• 1 x spacer with guide carriage
• 1 x water separator with pressure gauge and snap-on quick couplings
• 1 x connecting hose with snap-on quick couplings from the device to the water separator, including 6-piece connection set
• 1 x air connection hose with snap-on quick coupling 5m
• 1 x Teflon tape
• 1 x protective cover
