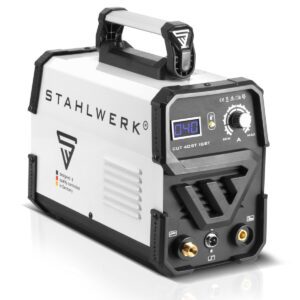

STAHLWERK Plasma Cutter CUT 40 ST IGBT / Plasma Cutter with 40 A and HF Contact Ignition

STAHLWERK Plasma Cutter CUT 40 ST IGBT / Plasma Cutter with 40 A and HF Contact Ignition

The powerful STAHLWERK Plasma Cutter CUT 40 ST IGBT plasma cutter delivers a powerful 40 amps and has a precise high-frequency (HF) contact ignition for first-class ignition behavior. Depending on the material, the cutting capacity is up to 10 mm (mild steel ST37 up to 10 mm, V2A or V4A up to 7 mm, aluminum up to 4 mm).

The plasma cutter is suitable for all common conductive metals as well as painted sheet metal and rust film. The cutting current can be infinitely adjusted from 15 to 40 amps. The compact device has smart cooling and overheating protection and is easy to transport at just 7.0 kg.

The STAHLWERK CUT 40 ST IGBT plasma cutter is supplied with a comprehensive accessories package.

Device functions & components of the Stahlwerk Plasma Cutter CUT 40 ST IGBT

• Plasma / CUT – A plasma jet is generated by means of electricity, which melts the material, which is then removed with compressed air. This allows effortless precise cutting of all conductive metals such as standard steel, stainless steel, copper, aluminum, titanium and many more.
• Cut thickness – cut-offs are possible up to 10 mm depending on the material. Mild steel ST37 up to 10 mm, V2A or V4A up to 7 mm, aluminum up to 4 mm.
• Contact ignition – High frequency (HF) contact ignition for first-class ignition performance.

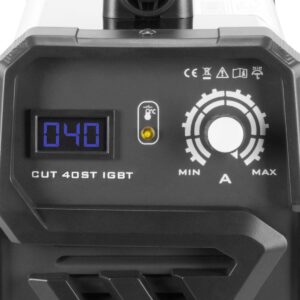

• Cutting current – Stepless adjustment from 15 to 40 A.
• Air after-run – Air automatically flows after the cutting process is completed to cool the torch and reduce nozzle and electrode wear.

Device features & advantages

• IGBT Technology – Latest and most advanced transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!

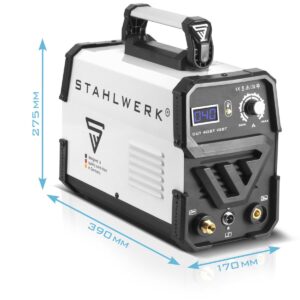

• Lightweight & Compact Design – Weighing only 7.0 kg and measuring 390 x 170 x 275 mm, the unit is ideal for cutting work anywhere. Innovative IGBT transistors save space and weight compared to old MOSFET technology. No more heavy carrying!

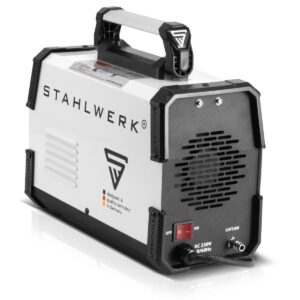

• Highest efficiency & power – Single phase AC power (230 V) supplies the unit and allows an output power of real 40 amps.
• Smart Cooling & Overheat Protection – State-of-the-art technology, built-in overheat protection and high performance cooling allow the maximum power to be retrieved.

The Stahlwerk Plasma Cutter CUT 40 ST IGBT comes with the following;

• 1 x Plasma cutter STAHLWERK Plasma Cutter CUT 40 ST IGBT

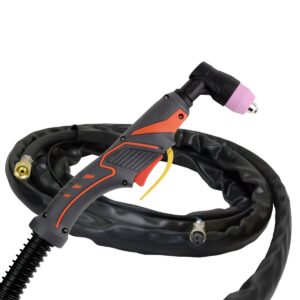

• 1 x Professional plasma hose package AG-60/SG-55 3 m
• 1 x 3-piece plasma accessory set (pre-assembled):
  • 1 x plasma nozzle
  • 1 x plasma electrode
  • 1 x ceramic cap
• 1 x earth cable 3 m

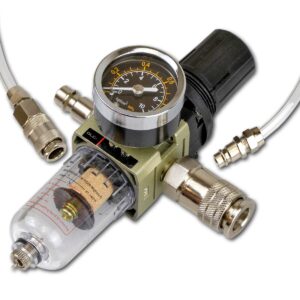

• 1 x water separator with pressure gauge and snap-on quick-release couplings
• 1 x Connecting hose with snap-on quick-release couplings from the device to the water separator, incl. 6-piece connection set
• 1 x Air connection hose with Snap-on quick-release coupling 5 m
• 1 x Teflon tape
• 1 x protective cover
