CROSARC MMA 161D Stick Welder 110/230V with Lead Set

Crosarc MMA 161D Stick Welder 110/230V dual voltage arc welder with welding leads is a highly portable latest technology inverter based DC multi process power source operating from a 110v/230v mains supply.

This advanced DC MMA welding machine also offers TIG in DC with lift, it produces excellent arc characteristics with a range of electrodes and is the perfect solution to site repair and light fabrication applications.

MMA 161D Stick Welder comes with:

• Owner’s Manual
• 161D Inverter Power Source
• Earth Return Lead & Clamp
• 3 Mtr MMA Lead
• VRD Safety Device

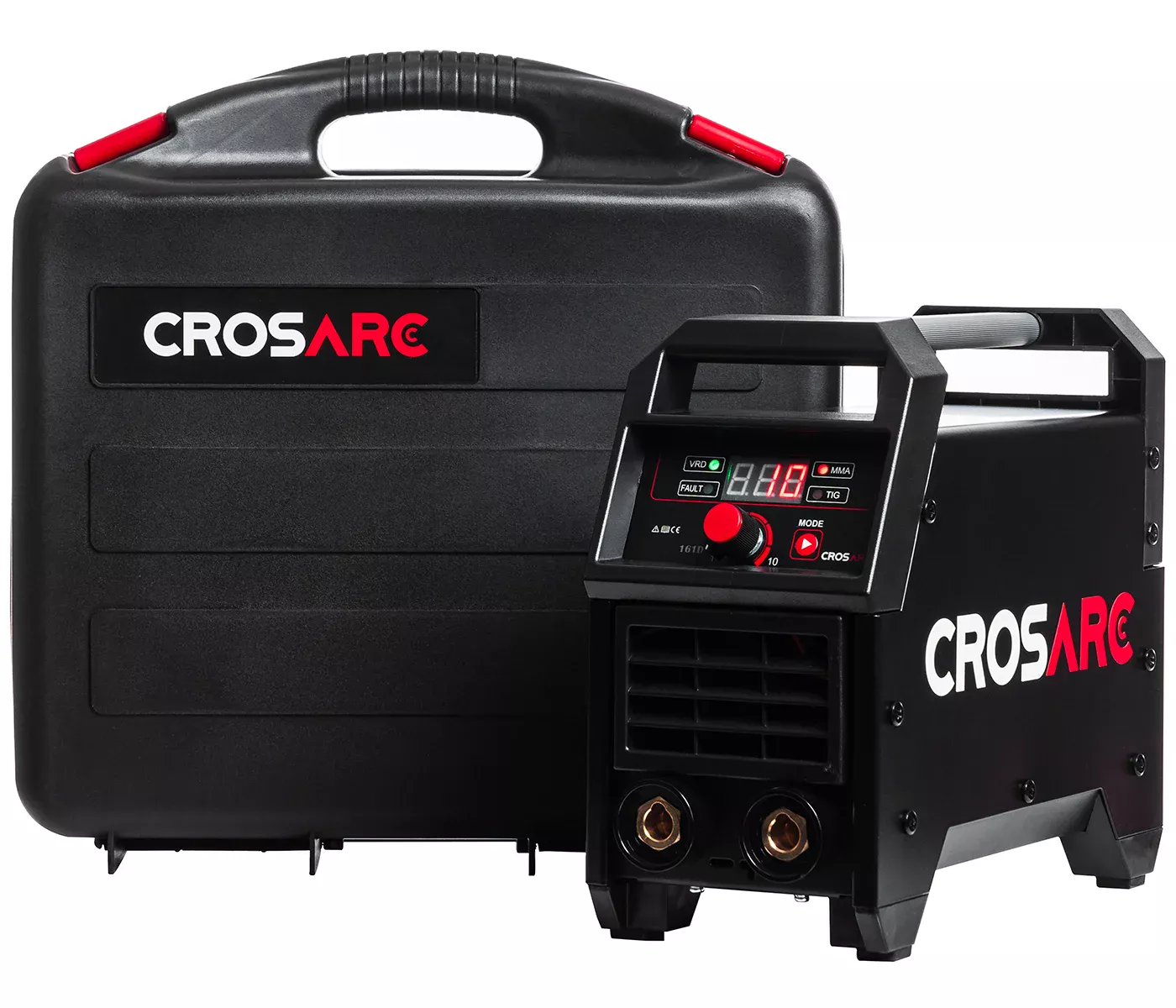

• Carrying Case
• 13A Plug

Features of the Crosarc MMA 161D Stick Welder:

• Latest IGBT Multi Process Inverter Power Source

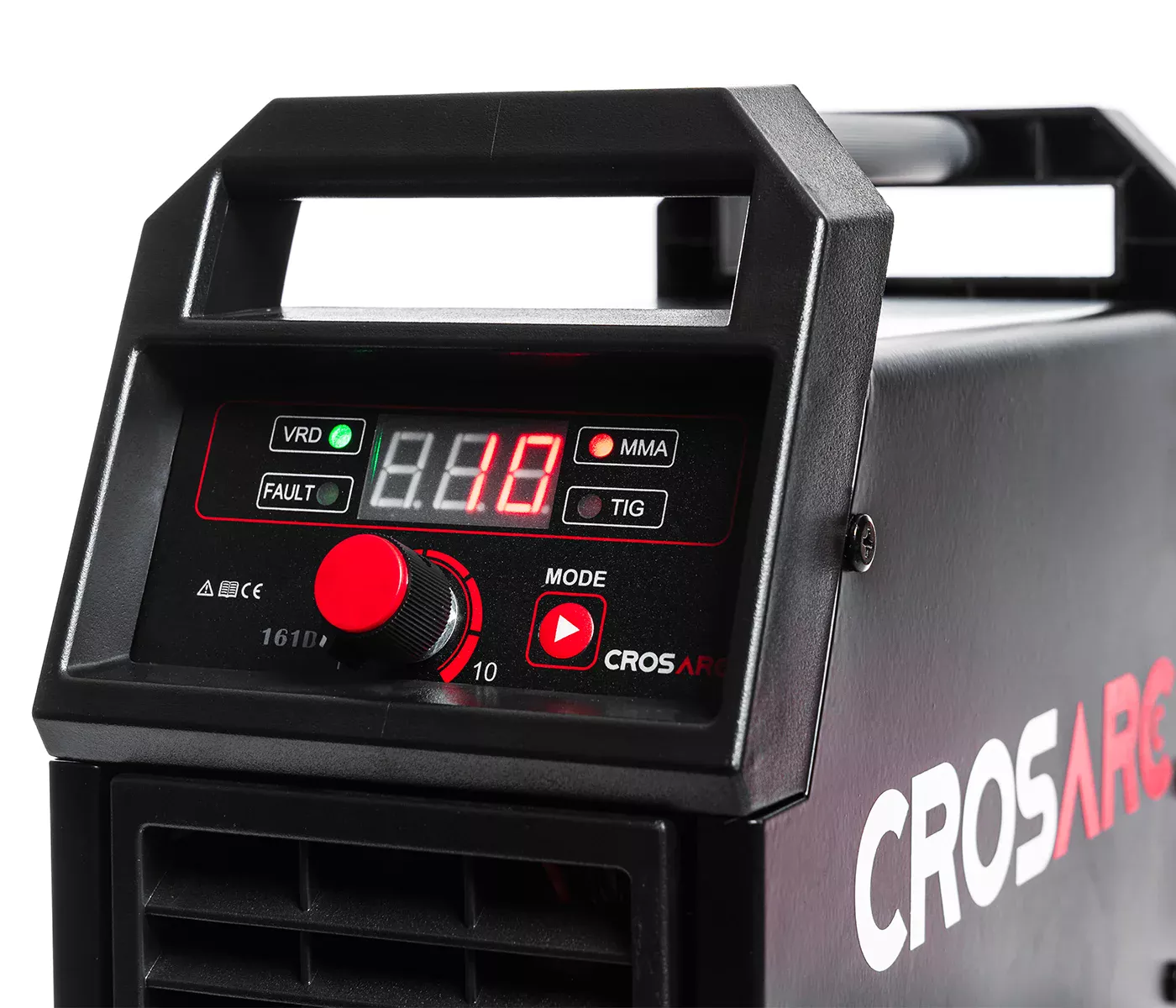

• Digital Amp Display
• Suitable for 1.6 – 3.2mm MMA Electrodes
• 35-50mm Cable Sockets
• Generator Friendly
• Easy Set Up & Operation
• Portable

Shop our range of welding machines and products here.

FAQ about the Crosarc MMA 161D Stick Welder

Do I need a 200A welder, or is 160A enough?

It’s down to what you plan on welding.  If you’re welding mild steel and planning to use a 6013 Electrode you’ll need the following amperages to run the size of electrode you want to use.

1.6mm   20-45 amps

2.0mm  35-60 amps

2.4mm  40-90 amps

3.2mm  80-130 amps

4.0mm 105-180 amps

5.0mm 150-230 amps

As you can see, the CrosArc 161D will run up to a 3.2mm electrode on 230 Volt. If you plan to run of 110V your maximum amperage with be 120 amps.  For 4.0mm + you will need a minimum of 200 amps.

The CrosArc 161D will also be suitable if you are welding stainless steel with up to a 3.2mm Stainless Electrode.

Can I use this welder away from the workshop?

Yes the CrosArc 161D stick welder is a dual voltage machine so you can take on site and use 110Volt.  If you plan to use on a generator, make sure your generator is a minimum of 8kVA – This is an inverter welder and very sensitive to power spikes.  If you use too small a generator, you will damage the circuit boards in the machine.

What jobs is the MMA 161D best suited for?

The CrosArc MMA 161D is an excellent choice for maintenance, repair and light to medium fabrication work.  Its compact size and portability make it well suited to farm repairs, gates and railings, trailer maintenance, workshop projects, site work and for anyone just getting into welding.

Is this machine suitable for occasional use as well as daily work?

Yes, the stick welder can be used everyday or just brought out for a quick repair.

How portable is the CrosArc MMA 161D?

Weighing 8.5kg and having the dual voltage option, it’s a great choice when you’re looking for portability.

What makes the MMA 161D different from cheaper stick welders?

CrosArc is a trusted quality brand.  The machine has technical and warranty support in the UK and Ireland.
